The plans of a property

Availability

This page concerns organisations running GraphlakeThe Stonal interface for viewing and managing plans: it is what the Plans tab displays..

If your organisation is still on AbylaPlan management before Graphlake. Its screens are described in the Earlier versions section., your screens are described in Platform - Plans tab (Model) and Model.

The essentials in 30 seconds
  1. Open My properties, then your property or building.
  2. Click the Plans tab: the site plan opens.
  3. Pick a floor or a dwelling in the list on the left to display its plan.

Then: search for an element, measure a distance or export the plan as a PDF.

Correcting a piece of information or a building's structure? See Editing plans.

What it is for​

The Plans tab lets you view the digital models of your property: this is the Graphlake interface.

It also works for properties that have not been modelled — the screen then adjusts to what is available.

The interface reads in two or three parts, depending on whether a digital model exists:

PartWhat you find there
On the left — the treeThe whole physical composition of your property
In the middle — the planOnly present if you have a digital model
On the right — the information panelThe characteristics of the selected element, whether picked in the tree or on the plan

Video tutorial, 1 min 43: opening a plan and reading the data it carries.

The screen explained​

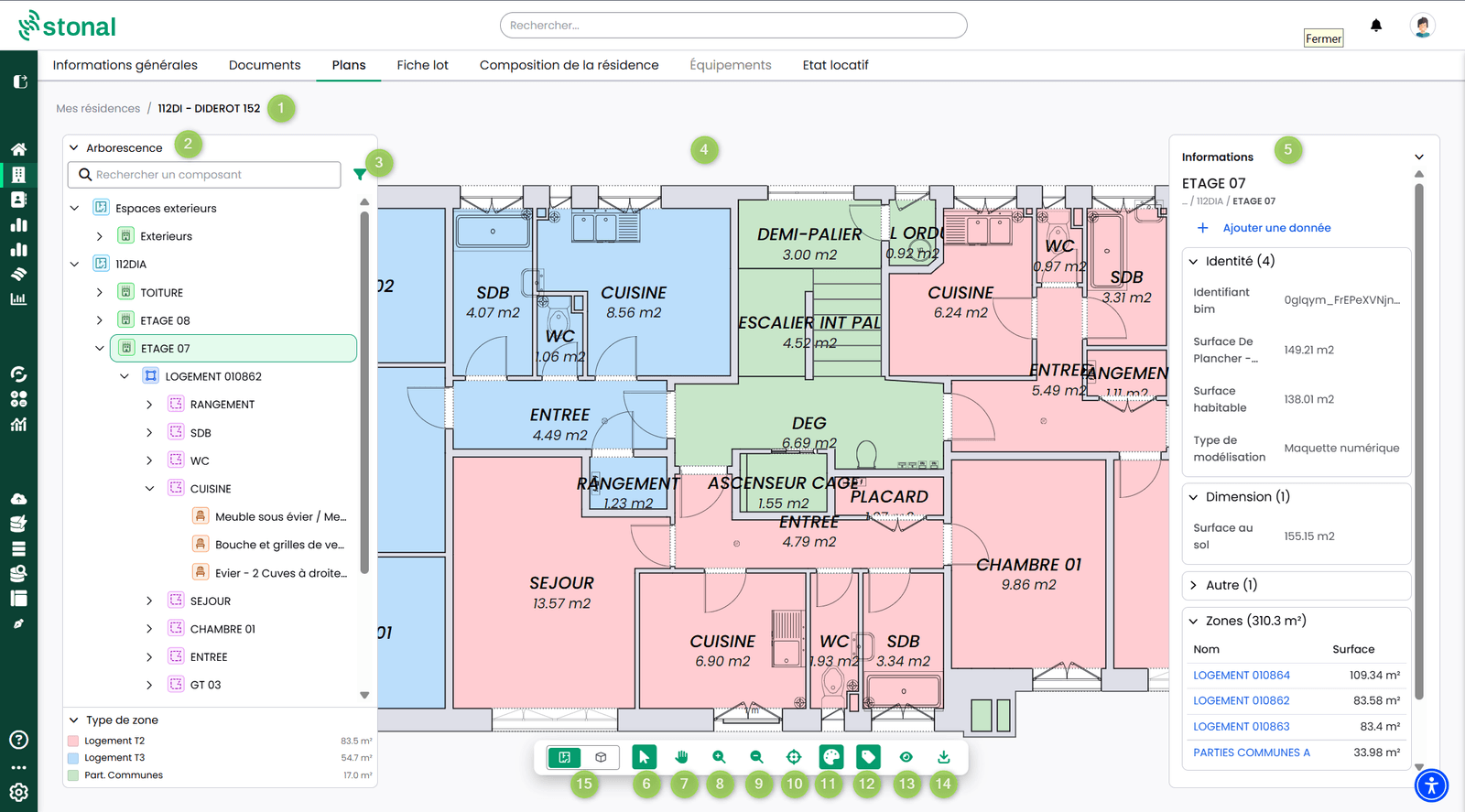

The Plans tab: tree, plan coloured by theme and information panel

The screen has six areas:

  1. Breadcrumb — locate the property or building, and move up a level.
  2. Tree — the breakdown of the property. Expand and select an item to zoom onto it.
  3. Search — find an item (site, building, floor, zone, room, equipment) by type, name or code.
  4. "Edit" switch — turns on the tree's Edit mode: see Keep a building's structure up to date.
  5. Plan — the viewing area.
  6. Information panel — all the information of the selected item: renewal date, brand, equipment type…

The toolbar, at the bottom of the plan, follows the numbering on the capture:

MarkerToolUse
7View modeSwitch between 2D and 3D, when the 3D model is available
8SelectChoose what you select: equipment, rooms… The arrow next to it also offers Multiple selection: see Select several rooms
9PanMove the plan without selecting an element by mistake
10Zoom inThe scroll wheel zooms too, no key to hold
11Zoom out
12Reset zoomGo back to the default zoom
13MeasureMeasure a distance on the plan: see Measure a distance on the plan
14ThemesColour the plan by a criterion
15LabelsShow the name and area of spaces on the plan, and set the label size with a preview
16DisplayShow or hide certain elements: plots, networks, areas…
17Export as PDFGet the plan as a PDF

The active tool is shown in green. A marker on the button tells you that a theme, a label type or a layer is applied.

Video tutorial, 2 min 39: moving around, zooming, recentring, finding an element.

Switching to 3D​

Button 7 switches the view to three dimensions. It is only active on properties whose 3D model is available.

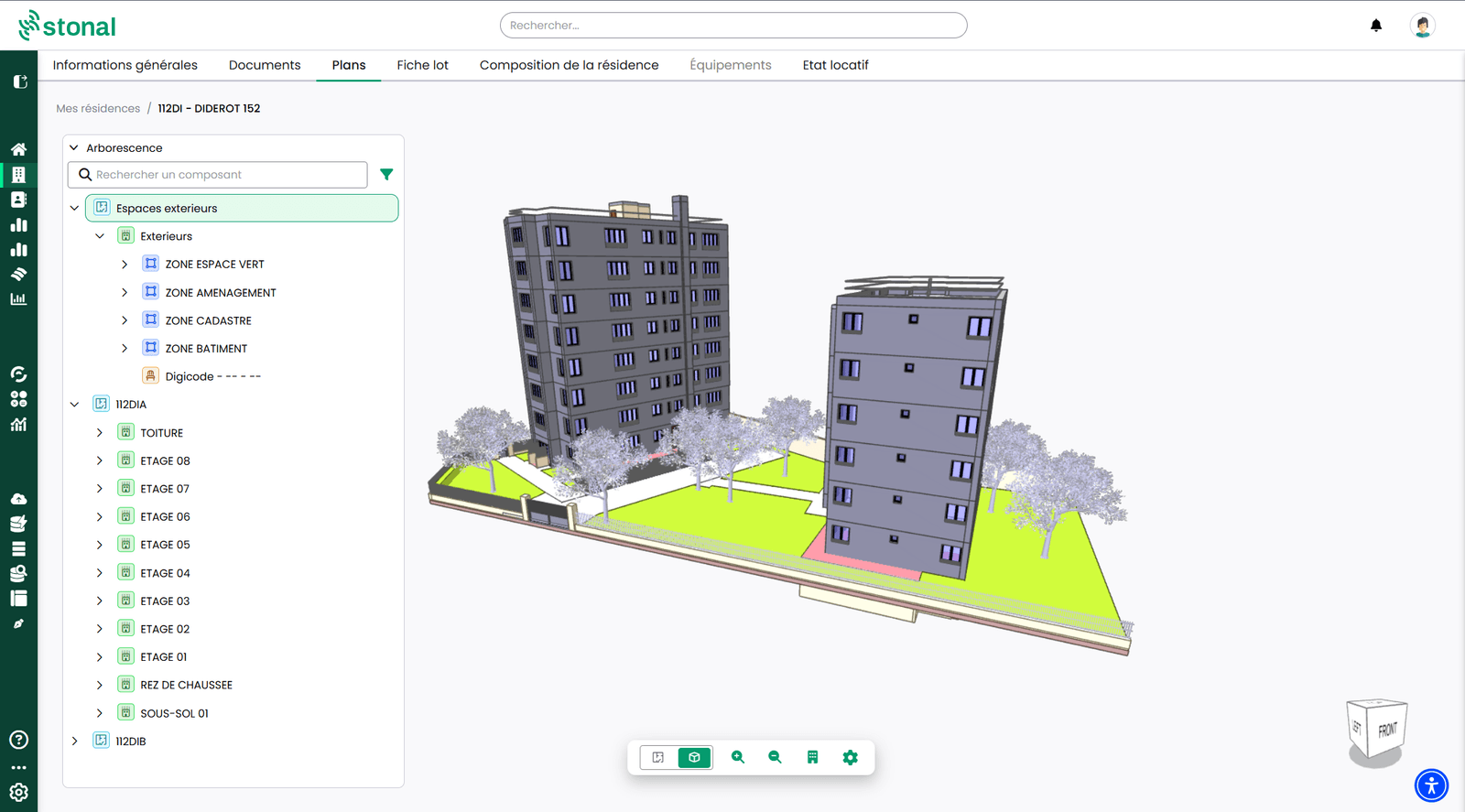

A building of the property seen in three dimensions

The 3D view is handled with the mouse: left-click to rotate the model, scroll wheel to zoom. The orientation cube, at the bottom right, tells you which side you are looking from and lets you return to a specific face. The toolbar there is reduced to the functions that make sense in 3D. Select, Pan, Reset zoom and Display disappear; Zoom in and Zoom out remain, and three 3D-only tools appear: Section plane, Buildings and Parameters.

  • Themes: a theme turned on in 2D also colours the model in 3D, and the other way round. For a theme on rooms, the rooms are shown on the floor you are viewing; for a theme on equipment, they are hidden.
  • Measure: two clicks on the model display the distance. Measurements taken in 2D are kept when you switch to 3D and back to 2D.
  • Section plane: this tool slices through the model to show its inside. It takes a little practice to master.
  • Labels: room labels are also shown in 3D.
  • Buildings: on the plan of a site with several buildings in 3D, choose which ones are shown, or tick Select all.
  • Parameters: show or hide the coverings and rooms of the model.
  • Export as PDF: the 3D view can be downloaded as a PDF (A4 landscape), with the measurements and the theme on display.

Step by step​

Open the plans of a property​

  1. Open My properties in the left-hand menu.
  2. Find the property or building you want.
  3. Click the Plans tab.

The digital model is displayed directly in the platform. The site plan, always at the top level of the tree, opens automatically.

Colour a plan by theme​

  1. Choose the level in the tree.
  2. In the toolbar, click Themes.
  3. Choose the theme and apply it.

The plan is coloured and a legend appears — you can move it, or zoom in on it. For example: vacant dwellings, or dwelling types.

Some themes depend on the level

Site areas, for instance, only appear if you have selected the site.

Your theme follows you from one plan to another

When you change level, or switch between 2D and 3D, the theme you chose stays applied. If it has no data on the new plan, the plan is shown without colouring and a message tells you that the theme is not available on this plan. It applies again as soon as you return to a plan where it exists.

View the information of a component​

Choose the level, then click the component. Expand the property groups: condition, dimensions, renewal date… Link-type properties are clickable.

If several pieces of equipment overlap where you click, a "Several equipment here" window opens: choose the one you want to view, then click Confirm.

If your organisation uses service provisions, the information panel of a piece of equipment also shows what it serves. Service provisions are created, edited and deleted from this panel or from the plan, depending on the rights you have been given: see Service provisions of a unit.

Search for an element on the plan​

Two routes lead to a piece of equipment, depending on what you already know about it:

  • the tree, if you know where it sits: expand down to it;
  • the search field, by typing its name, its code or its type: the most direct route when you do not know where it is.

The search field also works as a filter:

  1. Click in the empty field: a menu offers the categories present in the portfolio on display (equipment, spaces, zones, units). Tick a whole category, or open it to choose specific types, each with its number of items.
  2. Or start typing: the suggestions are split between matching types, to tick, and tree elements.
  3. Each ticked type becomes a filter shown under the field, with its total. Remove it with one click, or all of them at once with "Reset filters". The filters stay active if you clear the text.

Criteria add up: several types, or a type and a text, show every item that matches at least one of them. A counter shows the number of results.

Results are highlighted both on the plan and in the tree. Branches that contain results expand and show how many they hold. The List view also lets you browse them.

For example, tick the "Bathroom" and "Shower" types: the matching items are highlighted on the plan, and the tree shows which floors and dwellings they are in.

The search field also accepts the rental management code of a unit, regardless of upper or lower case. The unit found is highlighted on the plan.

A unit found by its rental management code and a distance measured on the plan

Rotate the view of a building​

When you open a building, its floors are shown stacked: this is the stacked view. If some floors hide others, change the viewpoint:

  1. In the tree, select the building to display its stacked view.
  2. In the toolbar, click Viewpoint.
  3. Adjust the view:
    • Floor spacing: spread the floors apart, from 1 to 10;
    • Horizontal shift of the viewpoint: rotate the building;
    • Vertical shift of the viewpoint: look at it more or less from above.
  4. To go back to the default view, click Reset.

A dot on the Viewpoint button shows that the view is not the default one. The viewpoint is kept in the plan link: the person you share it with sees the building from the same angle, and the PDF export uses it too.

The stacked view of a building, rotated, with the Viewpoint menu open

Select several rooms and read their combined areas​

To know the total area of a set of rooms without opening each sheet, for example every service shaft in a building:

  1. In the toolbar, click the arrow next to the Select tool, then choose Multiple selection.
  2. Select the rooms, whichever way suits you best:
    • on the plan, click a room: it turns green. A second click removes it from the selection;
    • in the tree, tick the box in front of a room or a piece of equipment;
    • from the search field, tick the results one by one, or tick a type to add all its results at once.
  3. Change floor if needed: the selection is kept from one plan to another.

The Multiple selection panel, on the right, lists the Selected components, grouped by floor. Below it, the Computed properties add up the values of the selected rooms: number of spaces, living area, floor area, height and perimeter. A property that none of the selected rooms fills in is not shown. Equipment is counted separately and does not enter the totals.

The Clear selection button empties the selection in one click.

Four rooms selected on a floor plan: the panel lists them and adds up their areas

What multiple selection does not do yet

Floors and dwellings cannot be ticked: to select their content, tick their rooms one by one, or use the search. Multiple selection is not available in Edit mode.

Measure a distance on the plan​

  1. In the toolbar, click the Measure icon, shaped like a ruler.
  2. Click the starting point, then the end point.

The distance is displayed in metres. You can take several measurements in a row. Press the Esc key to leave measuring mode.

The tool also works in 3D, and measurements taken in 2D are kept from one view to the other.

Export the plan as a PDF​

In the toolbar, click Export as PDF: the file downloads straight away.

A title block, filled in automatically, is shown to the right of the plan: the legend of the active theme, the site, the building, the floor or unit exported, the scale and the date.

Video tutorial, 1 min 33: producing the plan of a dwelling or a floor, to scale.

Automatically calculated areas​

Video tutorial, 1 min 07: living area, rooms and outbuildings, read from the plan.

Stonal calculates three areas at each level, by adding up those of the spaces (the rooms) it contains: on one side up to the floor, the building and the property, on the other up to the zone (a home, for example) and the unit.

AreaWhat it measures
Floor areaThe raw geometric area, with no usage rule
SHAB — habitable areaHabitable spaces at least 1.80 m high (Boutin law reference)
SDP — gross floor areaEnclosed, covered spaces at least 1.80 m high (planning code reference)

Some spaces are not counted in these two areas:

  • by type: parking and car park circulation, outdoor spaces (balconies, loggias, terraces, conservatories, porches), plant rooms and technical shafts, cellars and storerooms, unconverted lofts and rooms, voids, stair and lift shafts, shared rooms and refuse rooms. For the habitable area, shared corridors are excluded too;
  • by zone: a space located in a retail, professional-premises, office, sold-dwelling, cellar, parking, outdoor or roof zone is not counted, whatever its type. For the habitable area, common-parts zones are excluded too.

Corridors and entrances inside a dwelling are counted in the habitable area. Corridors in the common parts are not.

Areas calculated before a rule change

When the calculation rules change, areas that were already calculated are not updated automatically. If the values shown look outdated, contact your referent to request a recalculation.

These calculations are indicative

They do not replace an official measurement by a certified professional (surveyor, chartered surveyor) and have no legal value.

Known limits: the 10% deduction for multi-dwelling buildings is not applied, so gross floor area may be overstated by around 10%. Heated conservatories and porches, and converted cellars, remain excluded. Plant rooms are excluded even in a single-family house.

Good to know​

  • The plan remembers your settings. The label type and size, the layers on display and the active theme are saved for you, and found again the next time you open a plan, whichever it is. A shared plan link takes priority: it opens with the display chosen by the person who shared it, which then becomes your settings.
  • To report an anomaly on a plan or request that a plan be added, go through your internal contact.
  • To add or edit equipment, the most direct route is the tree's Edit mode, without leaving the Plans tab.
  • To update your portfolio in bulk, we recommend two routes: going through the Query tool (via a CSV import, for instance) or scheduling a field survey with our mobile app EDIT.

Keyboard and mouse shortcuts​

On the 2D plan:

GestureEffect
Scroll wheelZoom in or out around the pointer
Drag the planMove it, whichever tool is selected
Space + drag, or drag with the middle buttonMove the plan
Click a selected elementDeselect it
EscLeave the measuring tool

In the 3D view, with the pointer over the model:

GestureEffect
Drag with the left buttonRotate the model
Shift + drag, or drag with the middle buttonMove the model
Scroll wheelZoom towards the pointer
Arrow keysRotate and tilt the view
Right-click a componentIsolate, hide, show or zoom on that component
